Fluke

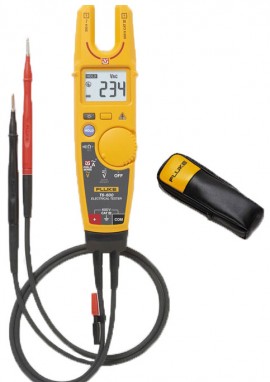

Fluke T6-600 Basic Tester
Model No :
Fluke T6 600
Part Code :
4910331

Overview

Fluke’s T6-600 is an integrated FieldSense technology for quick and easy take measurements by sliding the open fork over a conductor to see the voltage level without the need for test leads. The T6-600 works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening.

Features
- Be safer: Measure voltage to 600 V ac through the open fork, without test leads
- Be faster: No need to open covers or remove wire nuts
- Be more efficient: Simultaneously measure voltage and current
- Be everywhere: 17.8 mm open fork is widest in the industry; measure up to 200 A on 4/0 wires (120 mm2)
- Go beyond simple detection. Actually measure ac voltage and current values without test leads

Major Applications
- Industrial maintenance &sub station maintenance
- Non-Contact Voltage measurement

Technical Specifications
- Without test leads voltage: 600V AC TRMS
- AC Current: 200.0A
- With Testleads Voltage: 600V AC/DC
- Resistance upto 2000 Ohm
- Safety: 600 V CAT III

General Specifications
- Jaw opening: 17.8 mm
- Weight: 0.35 kg
- Battery Type and Life :- 2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense
- Safety IEC/EN 61010-1: Pollution Degree 2
- Electromagnetic Environment IEC/EN 61326-1: Portable
