Workswell

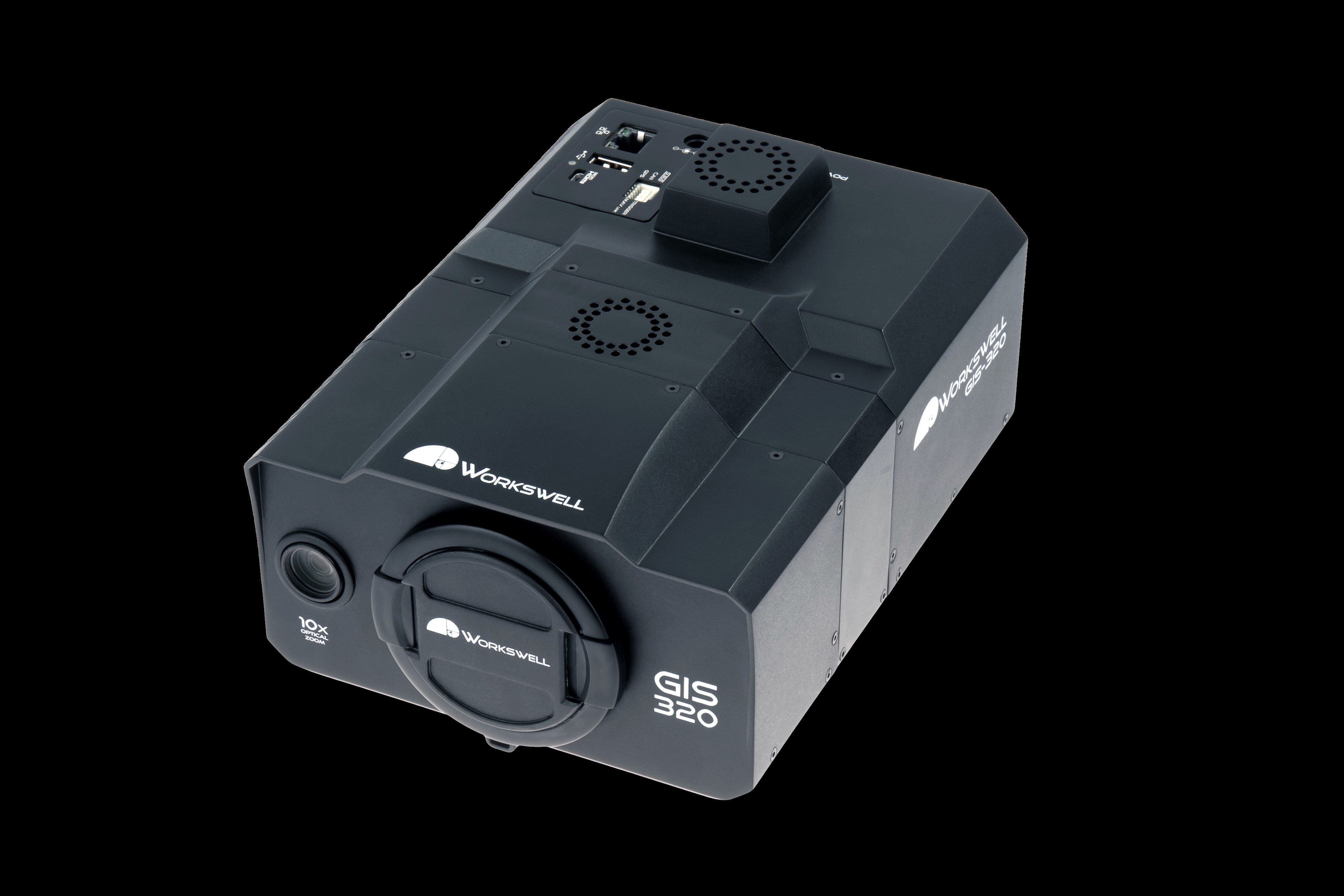

GIS-320Radiometric Drone Camera for Gas Detection

Model No :

GIS-320

Part Code :

GIS-320-24/14(23mm/38mm)

Overview

UAV Payloads: FLIR is the exclusive global distributor of the Workswell GIS-320 Thermal by FLIR optical gas imaging payload for unmanned aerial systems, unmanned ground vehicles, and mobile platforms.To detect gases workwell specially designed thermal camera which can visualise gas

Features

-Advanced Method for Gas Detection
-Sensitive and cool MWIR quantum detector

Major Applications

-Oil and Gas

Technical Specifications

-Resolution: 320 x 240 pixels
-Temperature ranges: between -20 °C…+350 °C (-4 °F…+662 °F)
-Temperature sensitivity: 0.010 °C (10 mK, 0.018 °F)
-Frequency: 30Hz
-Spectral range: 3.2 – 3.4 µm, Cooled InSb FPA detector (MWIR)
-Digital Visible Camera Resolution: 1920 x 1080 pixels (Full HD)

General Specifications

-Input supply voltage: 10-28 VDC, Coaxial 2 x 6.4mm, outer shell - GND
-Power dissipation (avg.): 18 W
-Operating temperature: -15°C to +50°C (5 °F to 122 °F)
-Mounting : 4 x 1/4-20 UNC thread
-Dimensions: 201 x 150 x 101 mm(7.9 x 5.9 x 3.97 in)
-weight: <1.6 kg <3.5 lb

Catalogue

https://www.elmack.co.in/images/downloads/Catalogue/GIS-320.pdf

Manufacturing details:

https://workswell-thermal-camera.com/gis-gas-imaging-system-for-drones/
