FEV300-Test Adapter Kits for Electric Vehicle Charging Stations

Model No :

FEV300

Part Code :

5348008

Overview

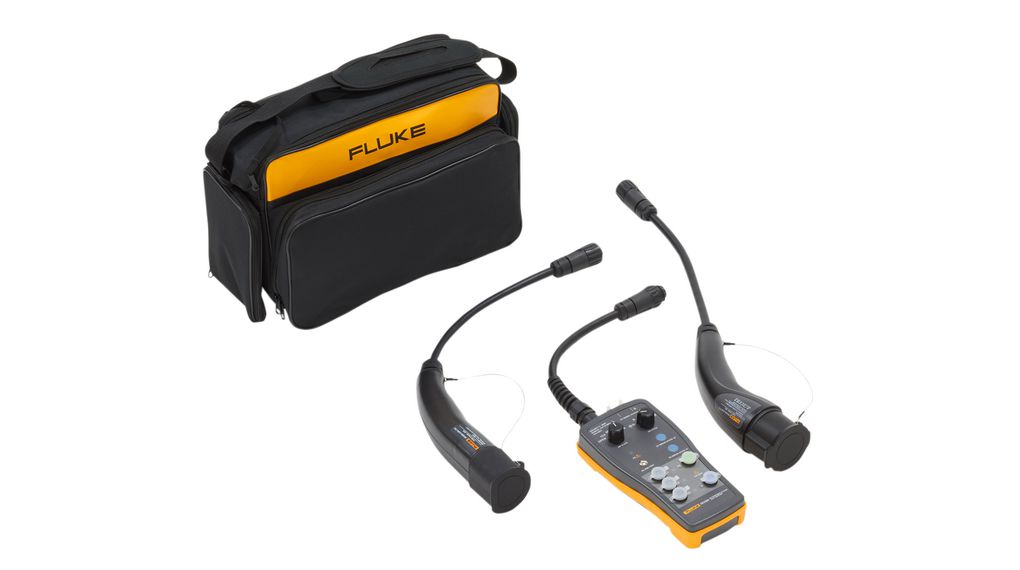

FEV300 Test adapter kits are designed to test function and safety of charging stations mode 3 for AC charging. The adapter imitates an electric vehicle and opens up a charging cycle (activating voltage/current output), allowing you to conduct tests in combination with appropriate test instruments like an installation tester ( Fluke 1664 FC) or an oscilloscope ( Fluke 120B Series).

Features

-Suitable to vehicle charging stations
-Proximity Pilot(PP) state"cable simulation".
-Separate phase indication by three LED lamps
- PE Pre-Test
-Control Pilot (CP) state “Vehicle Simulation”
- IP 54 rating
-Terminals for CP signal output
- Simulation of CP error state “E”
-Simulation of PE error state “F” (Earth fault)

Major Applications

-Safety testing of charging stations
- Functional testing of charging stations
- Troubleshooting/repair of charging stations

Technical Specifications

-Input Voltage: upto 250V(single phase system) upto 480V (three phase system), 50/60Hz, max 10A
-Internal Power Consumption: 3W max

General Specifications

- Dimensions (H × W × D): 110 × 45 × 220 mm length without connection cable and test cable
-Weight(including type 1 or type 2 connection cable):Approx 1KG
-Operating temperature: -20 °C to 40 °C
-Storage temperature: -20 °C to 50 °C
