Honeywell ARC45-40 Arc Protection Blankets

Model No :

Salisbury ARC45-40

Part Code :

ARC45-40

Overview

The Arc Suppression Blanket is used as a barrier for protection from the explosive and incendiary effects of electrical arcs and flashes. These hazardous electrical discharges can be caused by faults in cables, in cable splices and joints, and at transformer terminals, or they may be generated by the operation of switch gear, circuit breakers and lightning arrestors.

Features

- Salisbury by Honeywell Arc Protection Blankets are now available in 4’ x 5’ and 4’ x 8’ sizes
- Each size is available in 15kA or 40kA ratings

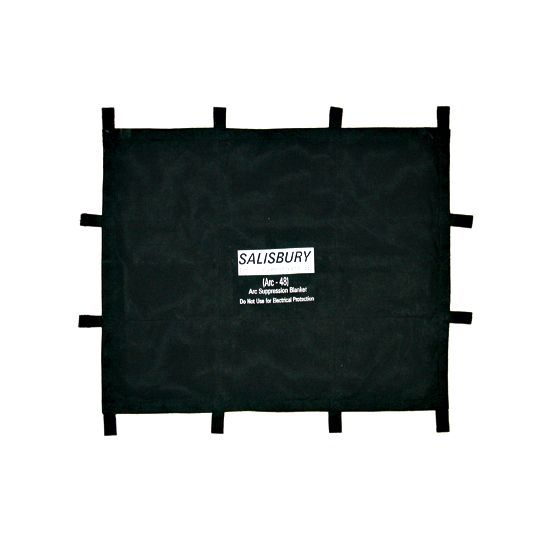

• The 15kA blankets (Sample Shown Here) include convenient loops
• The 40kA blankets include grommets to easily keep the blanket in place
- These new blankets are sold individually or with a storage bag or storage bag and tie-strap kit

Major Applications

- Worker protection in underground vaults, switchyards, and other locations where electrical equipment poses a risk of exposure to explosive electrical discharges

Technical Specifications

- Available in 4’ x 5’ and 4’ x 8’ sizes
- Each size is available in 15kA or 40kA ratings
- Note: These products do not eliminate or reduce requirements for proper PPE for arc flash protection
- Warning:
• Because of the unpredictability of electrical Arcs, the Arc Protective Blanket (APB) may not totally contain the arc and flashes, but only reduce or limit explosive and incendiary effects. Properly installed APB’s can reduce the risk of injury from the blast and heat. They do not provide any personal protection for hearing, eyes, smoke inhalation, hazardous gas inhalation, or burns
? Arc Protective Blankets are not designed for electrical insulating protection. Using the Arc Protective Blanket for electrical insulating protection can result in serious injury or death

General Specifications

- Meets New Astm F2676 Standard-
• ASTM Standard for Testing of Arc Blankets
• A new ASTM International standard will be used to determine the effectiveness of arc protective blankets in suppressing the combined effect of an arc flash and an arc blast. T
