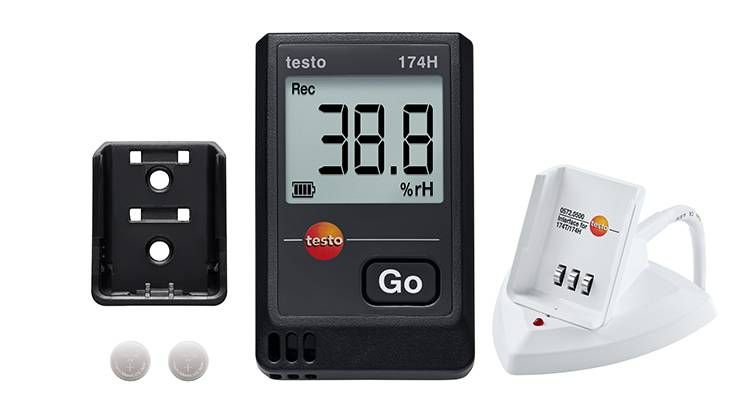

Testo 174 H - Temperature and humidity Mini Data Logger
Model No :
Testo 174 H
Part Code :
0572 6560

Overview

The Testo 174 H mini data logger allows you to monitor temperature and humidity sensitive goods– including foods, archives or metal parts that are susceptible to surface rust – or carry out discreet humidity checks in buildings.
The mini data logger has built-in long life sensors that can measure the temperature and humidity of the surrounding environment, a memory for upto 16,000 measurements and an easy-to-read display that shows the current reading as well as any breached thresholds.

Features
- Memory for up to 16,000 temperature and humidity measurements
- Long life humidity sensor for reliable and accurate measurements
- Easy data transfer via USB cable, practical data analysis and logging on PC
- Free software download (ComSoft Basic)

Major Applications
- Monitoring and documentation of building climate
- Monitoring and documentation of storage temperature and humidity
- Monitoring and documentation of transport temperature and humidity

Technical Specifications
- Temperature : NTC
• Measuring range : -20 to +70 °C
• Accuracy : ±0.5 °C (-20 to +70 °C)
• Resolution : 0.1 °C
- Humidity - Capacitive
• Measuring range : 0 to 100 %RH*
• Accuracy : ±3 %RH (2 to +98 %RH) at +25 °C, ±0.03 %RH/K ±1 Digit
• Resolution : 0.1 %RH

General Specifications
- Operating temperature : -20 to +70 °C
- Protection class : IP20
- Channels : 2 internal
- Memory : 16,000 measuring values
- Storage temperature : -40 to +70 °C
