Testo

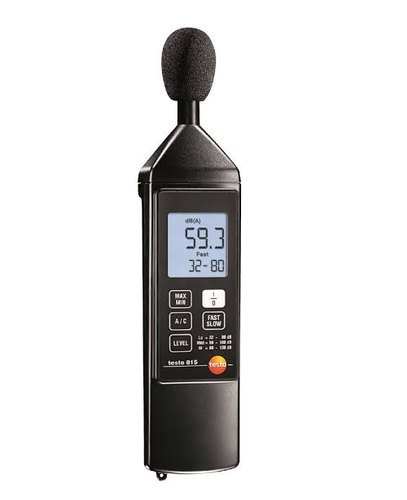

Testo 815 Sound Level Meter

Model No :

Testo 815

Part Code :

0563 8155

Overview

The Testo 815 can be used for monitoring measurements in the areas of air conditioning or heating, on combustion plants or at workplaces, however machine or discotheque noise can also be evaluated quickly and precisely.

Features

- Frequency evaluation according to characteristic curves A and C
- Easy to adjust (adjustment screwdriver included in the scope of delivery)
- Min./max. memory
- Integrated tripod knuckle screw (1/4 inch)

Major Applications

- Heating technology: measurement of the volume of burners
- Industry and trade: measurement of machinery noise
- Event technology or public authorities: noise levels at events
- Building services: simple measurements by the caretaker when there are complaints

Technical Specifications

- Sound Pressure
- Measuring range: +32 to +130 dB
- Frequence range: 31.5 Hz to 8 kHz
- Accuracy: ±1.0 dB
- Resolution: 0.1 dB
- Measuring rate: 5 s

General Specifications

- Operating temperature: 0 to +40 °C
- Pressure dependency: -0.002 dB/hPa
- Frequency weighting: A/C
- Section measuring range: 30 - 80 dB; 50 - 100 dB; 80 - 130 dB
- Time weighting: FAST 125 ms setting / SLOW 1 s setting
- Storage temperature: -10 to +60 °C

Datasheet

https://www.elmack.co.in/images/Downloads/Catalogue/testo-815-IN.pdf

Manufacturing details:

https://www.Testo.com/en-IN/Testo-815/p/0563-8155
